High Precision Carbide Turning Inserts DCGT11T304 Uncoated For Aluminum

Product Categories

Zhuzhou MMM New Material Co., Ltd.

Contact Now

High Precision Carbide Turning Inserts DCGT11T304 Uncoated For Aluminum

Brand Name : MMM

Model Number : Various

Certification : ISO 9001

Place of Origin : CHINA

MOQ : 10 PCS

Price : USD

Payment Terms : L/C, T/T

Supply Ability : 10,000 PCS/Month

Delivery Time : 5-15 Days

Packaging Details : Internal Plastic Box Packaging

Application : Aluminum Turning

Material : Cemented Carbide

Coating : Non

Grade : MA10

Type : Various

Color : Uncoated for Aluminum

Package : 10pcs/plastic Box

Keywords : Cemented Carbide CNC Inserts,Aluminum alloy insert

Stock : carbide inserts with stock available

Contact Now

High Precision Carbide Inserts For Aluminum Turning DCGT11T304

Application:

ISO N material, the first choice for non-ferrous metal processing such as aluminum alloy.

Feature Advantage:

Grade MN10:

Grade

Coating

Performance

Equivalent Grade

MN10

Uncoating

Ultrafine grained carbide, uncoated grade.
Excellent wear resistance, high strength and resistance to thermal deformation.
Suitable for processing materials such as non-ferrous metals and superalloys.
Better versatility and economy.

H10
HTi10
H01

Chipbreaker AL:

Class G precision, precision grinding of five-axis grinding machines.Ensure effective chip breaking and make the cutting more brisk.Surface finish to effectively prevent built-up edge, high quality machined surface and long tool life.The large rake angle and the back corner make the blade edge sharper.

Types:
- ISO standard turning inserts are available in a variety of conventional types.Different insert arcs of various specifications (R0.2, R0.4, R0.8, R1.2, etc.)

Serial	Type	MN10
C	CCGX09T3 * -AL	★
C	CCGX1204 * -AL	★
D	DCGX11T3 * -AL	★
S	SCGX09T * -AL	★
S	SCGX1204 * -AL	★
T	TCGX16T3 * -AL	★
T	TCGX2204 * -AL	★
V	VBGX1604 * -AL	★
V	VCGX1604 * -AL	★

Recommended Cutting Parameters:

				MN10
				Feed (mm/rev)
				0.05 - 0.35
ISO	Material	Heat Treatment	Hardness (HB)	Speed (m/min)
N	Aluminum Alloy	Un-Heat Treatment	60	1750 - 800
N	Aluminum Alloy	Heat Treatment	100	510 - 250
N	Cast Aluminum Alloy	Un-Heat Treatment	75	460 - 175
N	Cast Aluminum Alloy	Heat Treatment	90	300 - 110
N	Copper Alloy	Lead Alloy	110	610 - 205
N	Copper Alloy	Copper	90	310 -195
N	Copper Alloy	Copper, Lead-free Copper, Electrolytic Copper	100	225 - 115

High Precision Carbide Turning Inserts DCGT11T304 Uncoated For Aluminum

Product Tags:

carbide inserts for turning aluminum

cemented carbide inserts

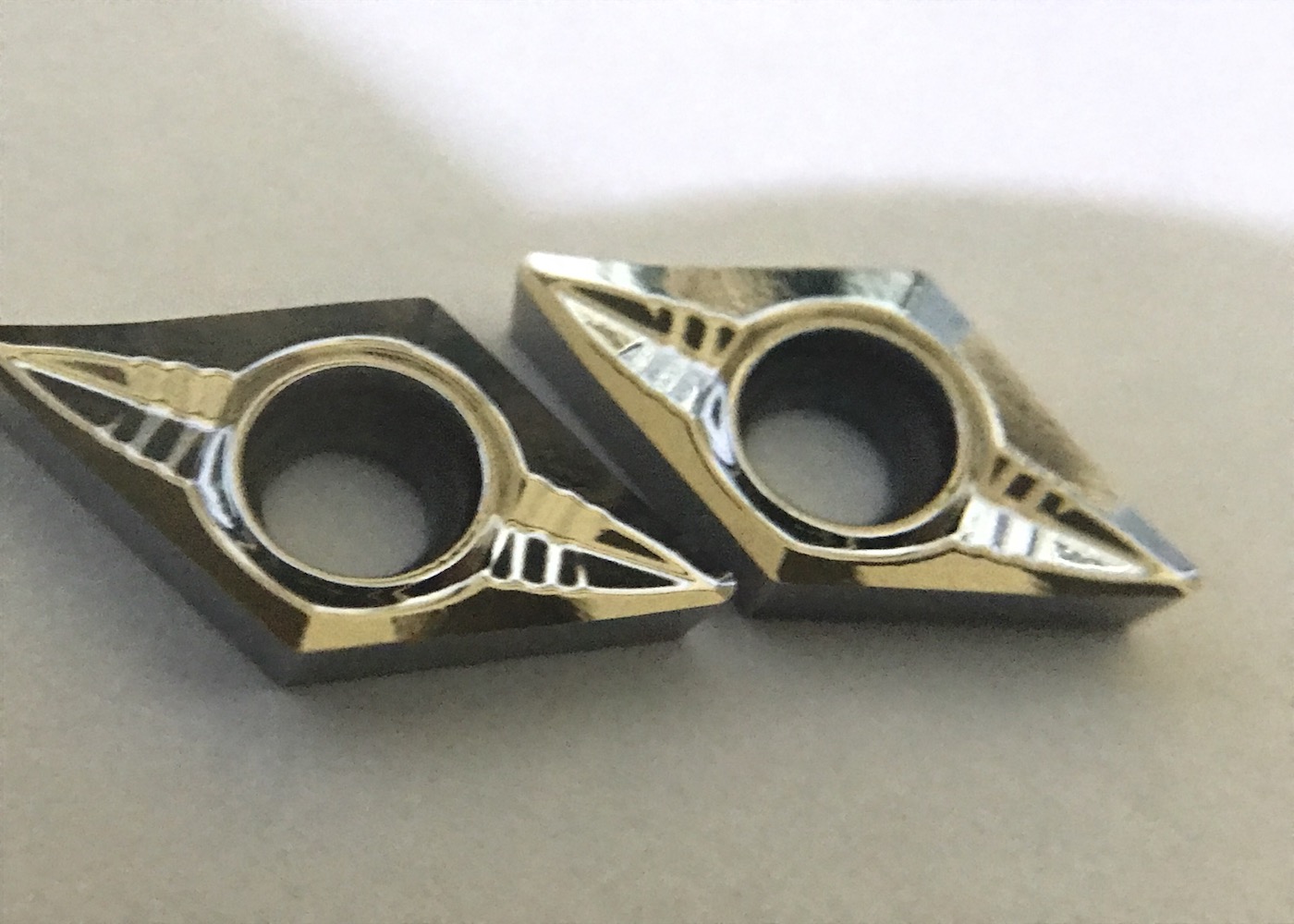

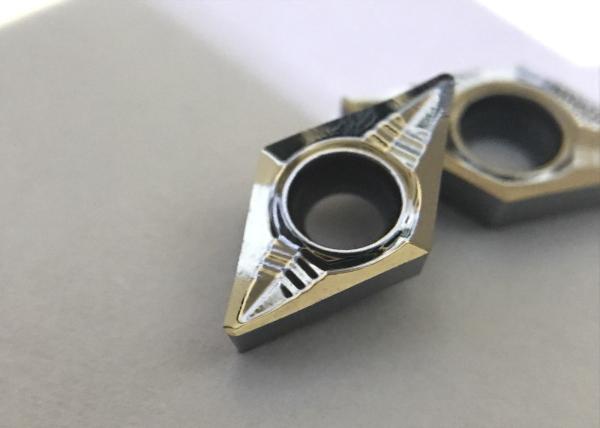

High Precision Carbide Turning Inserts DCGT11T304 Uncoated For Aluminum Images
